VPC Peering in AWS: An Essential Guide for Network Connectivity

AWS Chapter 1.6 - VPC Peering

In today’s cloud-based infrastructure, achieving seamless, secure, and private connectivity between Virtual Private Clouds (VPCs) is critical. AWS VPC Peering provides a way to connect multiple VPCs, allowing them to route traffic to one another without traversing the public internet. This article will dive into why VPC peering is useful, how it works, criteria for making it work, different possible scenarios, and the options for connecting VPCs across regions and accounts.

————————

What is VPC Peering?

VPC Peering is a network connection between two VPCs that enables you to route traffic privately between them. It facilitates network-level access between VPCs, allowing instances in one VPC to communicate with instances in another as if they were within the same network. This is especially useful when applications are distributed across different VPCs and need to communicate with each other without exposing data to the public internet.

————————

Why is VPC Peering Useful?

1. Secure Communication: Traffic between peered VPCs stays within the AWS network and doesn’t go over the public internet, which improves security.

2. Reduced Latency: As data remains within the AWS network, VPC peering can provide lower latency compared to internet-based communication.

3. Simplified Networking: It allows applications in different VPCs to communicate seamlessly without additional network configurations, making network management easier.

4. Cost Efficiency: Traffic between peered VPCs is billed only for data transfer, often reducing costs compared to data transfers over the internet.

5. Cross-account Collaboration: If you need to connect applications running in different AWS accounts, VPC peering provides a straightforward method to connect VPCs across accounts.

————————

How Does VPC Peering Work?

VPC Peering works by creating a request and accept mechanism:

1. Peering Connection Request: The owner of one VPC (Requester VPC) initiates a peering request to another VPC (Accepter VPC).

2. Peering Connection Acceptance: The owner of the Accepter VPC reviews the request and can accept or reject it.

3. Route Table Updates: Once accepted, route tables in each VPC must be updated to allow traffic to route through the peering connection.

4. Security Group and NACL Rules: Security groups and Network Access Control Lists (NACLs) need to allow the appropriate traffic between instances in the peered VPCs.

After configuring the peering connection, instances in one VPC can communicate with instances in the other VPC using private IP addresses. However, VPC peering is not transitive, which means if you need three VPCs to communicate with each other, you must create individual peering connections between each pair.

————————

Criteria for a Successful VPC Peering Connection

To ensure a successful VPC peering setup, certain conditions and configurations must be met:

1. Non-overlapping CIDR Blocks: The CIDR ranges of both VPCs must not overlap. This ensures there are no IP address conflicts when routing traffic.

2. Update Route Tables: Route tables for both VPCs must be updated to include routes to each other, pointing to the peering connection as the target.

3. Security Group and NACL Permissions: Security groups and NACLs must be configured to allow traffic between instances in the peered VPCs.

4. Cross-account Permissions (if needed): If the VPCs are in different AWS accounts, the AWS Identity and Access Management (IAM) roles or users initiating the peering request need sufficient permissions to create peering connections.

————————

Scenarios and Use Cases for VPC Peering

1. Intra-account, Intra-region: The simplest scenario where two VPCs within the same AWS account and region are peered together. This is ideal for organizations looking to segment their workloads within a single account.

1. Intra-account, Cross-region: VPCs in the same account but in different AWS regions can also be peered. This is known as inter-region VPC peering and allows for applications across regions to communicate directly. Inter-region peering incurs additional costs compared to intra-region peering.

1. Cross-account, Intra-region: Two VPCs in the same region but different AWS accounts can be peered, making it suitable for organizations that have multiple accounts (e.g., for different business units) but need inter-account communication.

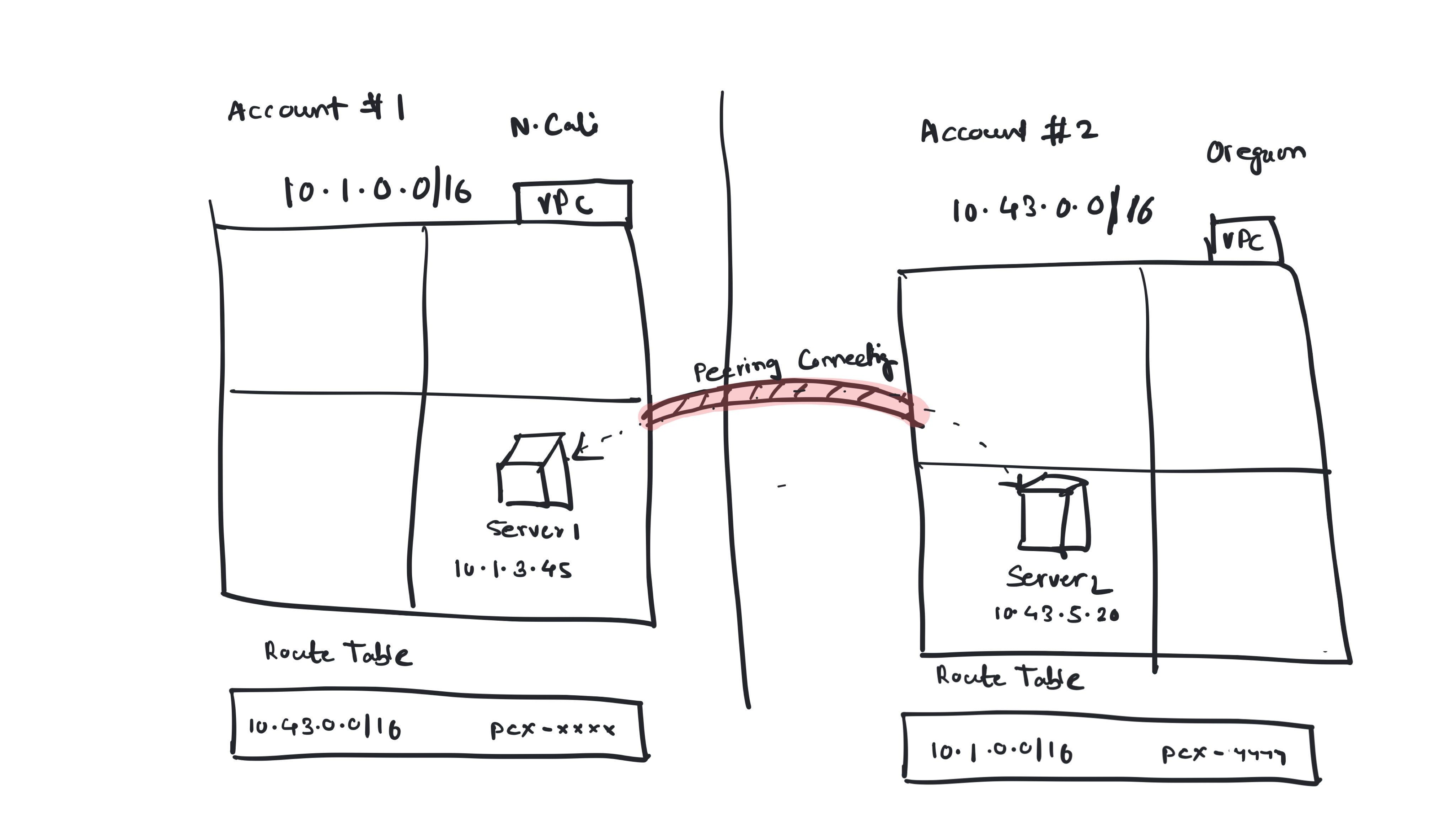

1. Cross-account, Cross-region: VPCs located in different AWS accounts and regions can also be peered, combining both cross-account and inter-region features. This can be valuable for companies operating on a global scale, enabling private communication between applications distributed across various locations and departments.

Each of these scenarios is valid and provides flexibility for complex multi-account and multi-region architectures.

————————

Limitations of VPC Peering

While VPC Peering is powerful, it does have limitations:

1. No Transitive Peering: If you have three VPCs, A, B, and C, with a peering connection between A and B, and B and C, traffic cannot automatically flow between A and C. You would need a direct peering connection between A and C to facilitate that communication.

2. No Overlapping CIDR Ranges: If two VPCs have overlapping CIDR ranges, they cannot be peered. This is a design constraint, so it's essential to plan your VPC CIDR blocks accordingly.

3. Network Load Balancer Limitation: Peering connections cannot directly reference Network Load Balancers in the Accepter VPC; traffic must be routed to individual instances.

4. AWS Region Limitations: Not all regions support inter-region VPC peering, though most major regions do.

————————

Configuring Cross-Region and Cross-Account VPC Peering

Cross-Region Peering

Cross-region VPC peering allows VPCs in different AWS regions to communicate over private IP addresses. This is ideal for companies with a global presence. Here’s how it works:

1. Initiate a Peering Connection: From the requester VPC, initiate a peering request to a VPC in another region.

2. Accept the Peering Request: The Accepter VPC owner reviews and accepts the request.

3. Update Route Tables: Update the route tables in both regions to include routes to each other, targeting the peering connection.

4. Configure Security Rules: Adjust security groups and NACLs to permit traffic flow across regions.

Cross-Account Peering

For cross-account peering, the process is similar to a single-account setup, but there are additional steps:

1. Grant Permissions: Ensure the IAM user or role initiating the peering request has permission to create and accept peering connections.

2. Accept the Peering Request: The Accepter account reviews and accepts the request.

3. Route Table and Security Configurations: Similar to intra-account configurations, update the route tables and security rules to allow traffic between VPCs.

————————

Example Use Cases

1. Microservices in Separate VPCs: If an organization uses microservices hosted across multiple VPCs, peering can enable private communication between services.

2. Data Replication Across Regions: VPC peering enables data replication across AWS regions for high availability and disaster recovery strategies.

3. Cross-Account Departmental Access: For organizations with multiple AWS accounts (e.g., finance, marketing), VPC peering can facilitate secure communication between departmental resources.

————————

Conclusion

AWS VPC Peering is an essential tool for creating private, scalable, and secure connections between VPCs within the AWS environment. Its flexibility allows organizations to connect VPCs across accounts and regions, addressing diverse architectural needs. However, it’s essential to understand its limitations, particularly the lack of transitive connectivity, and plan your VPC CIDR blocks and route tables carefully. By leveraging VPC peering, organizations can simplify network management, reduce latency, and improve security while enabling seamless communication across applications in different VPCs.
